LIFTS

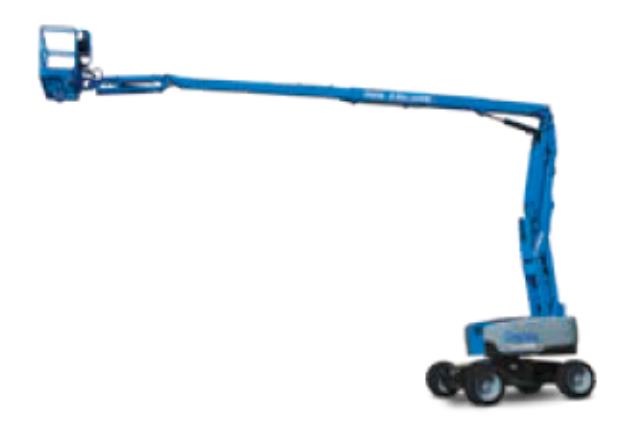

LIFT, GENIE, 60' Hybrid

Manufacturer Link: <Click Here>


	Image for reference only Actual item may look different Click on image for larger view Click on above thumbnails for alternate view

Daily: $580.00

Weekly: $1,740.00

Monthly: $3,480.00

Quantity: for a period of
day(s) week(s) month(s)

Additional Information

The Genie Z -60 FE is two machines in one. The full electric mode offers a full-day, emission-free run time on a single charge. The hybrid mode offers one week of run time with a single tank of diesel. The ideal, environmentally-friendly solution for increased efficiency and a lower cost of operation.
Overview
Full-time active oscillating axle helps maintain traction on rough terrain
4WD and 45% gradeability for superior terrainability
High-efficiency AC drive system for enhanced driving performance and simplified maintenance
Two modes of operation: all-electric and Hybrid, with outstanding efficiency and jobsite versatility
Dual parallelogramme and fully proportional controls for precise boom positioning and smooth performance
1.52 m (5 ft) articulating jib with a 135 range of motion to accurately position workers
Genie Fast Mast boom system allows operators to descend and retrieve materials and quickly return to working height
Width 2.49 m 8 ft 2 in
WEIGHT 7,756 kg 17,100 lbs
LIFT CAPACITY 500 LB
FUEL TANK 17 GAL REG GAS
MAX WORKING HEIGHT 65 ft 7 in | 20.16 m
MAX HORIZONTAL REACH 36 ft 7 in | 11.15 m
Max Up and Over Clearance (riser extended) 24 ft 3 in | 7.39 m
Below Ground Reach 8 ft 1 in | 2.46 m
Platform Capacity 500 lb | 227 kg
Height - stowed 2.54 m 8 ft 4 in
Height - transport (jib tucked under) 2.62 m 8 ft 7 in
Length - stowed 8.15 m 26 ft 9 in
Length - transport (jib tucked under) 6.30 m 20 ft 8 in
Platform rotation 160
Vertical jib rotation 135
Turntable rotation 355 non-continuous
Turntable tailswing - riser up 0.58 m 1 ft 11 in
Turntable tailswing - riser down 0.81 m 2 ft 8 in
Drive speed - stowed 6.44 km/h 4.0 mph
Drive speed - raised** 1.09 km/h 0.68 mph
Gradeability - 4WD - stowed*** 45% 45%
Turning radius - inside 2.51 m 8 ft 3 in
Turning radius - outside 5.69 m 18 ft 8 in

Also check the following item(s) related to the above:

BODY HARNESS WITH LIFT RENTAL

* Prices are subject to change. Tax, damage waiver and other fees are not included in this price estimate.

* Please call us with any questions about our lift genie 60 foot hybrid rentals in Edmonds WA, also serving the Seattle Metro communities of Lynnwood, Mountlake Terrace, Everett, Seattle, Shoreline, and Bothell.
